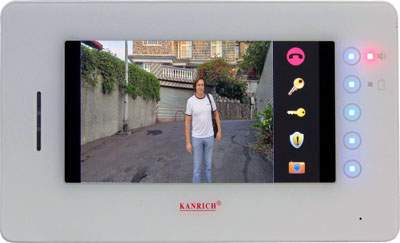

Video Touch Pad Handsfree Monitor
Power In: DC15V
Screen: Color- 7" Diagonal Color TFT LCD Panel
Resolution: 800H X 400V dot
Calling tone: Ding-Dong tone
Consumption: standby 200mA. operating 450mA
wire: 2 wires (Cat 5e)
Dimension: 155/256/27 mm
Packing: 0.35 cubic ft
Weight: 0.5 kg

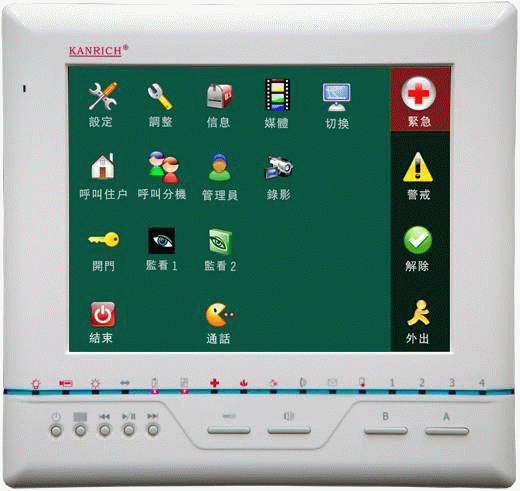

368MmR 8" Touch Panel Anti-Buglar LED color Monitor w/ Video Recorder

The multimedia player function doorphone system,MP3 / WMA /DVD/digital photo frame all these files can be displayed through SDHC card on 8” monitor independently without PC.
Perpetual Calendar / LCD Clock / Thermometer all these information on monitor
Touch Panel Anti-Buglar Handsfree LED color Monitor w/ Video Recorder
Power In: DC15V
Audio: DC15V(from 368DB)
Consumption Current: Video-Stand-by 300 mA, Working 1A
Anti-Burglar System: Stand-by 150mA, Working 300mA
Screen: Color- 8" LED Color LCD Panel (4:3)
Brightness: 250nix(or cd/m2), new vivid saturation color
Resolution: 800 RGB(W) x 600(H) dot
Active Area: 162(W) x 121.5(H) mm
Dot Pitch: 0.2025(W) x 0.2025(H) mm
Color configuration: R. G. B. stripe
View Angle: Top: 50deg. Bottom: 65deg.
left / Right: 65deg
Communicating Interface: Picture 75 ohm 1.0 Vpp
Intercom single wire R-T, Double way transmitting wires
Anti-Burglar: double wire T-R, Double way transmitting wires
Installation way: Wall mounting type
Material: ABS
Dimensions: 212W/201H/40T mm
Weights: 1.0 kgs
Measurement: 0.18 cuft

Anti-Burglar Loops
Anti-Burglar loops: There are 5 loops:
“door N.C. 1” + “window N.C. 2” + “panic loop” + “Fire loop” + “Gas loop” .
N.C. loop output impedance + circuit impedance > 5K Ohm as trigger, 5K~3K Ohm is uncertain value, it is possible to judge trigger. < 3K Ohm as normal loop.
“Panic”, “Fire” N.O. loop output impedance + circuit impedance < 3K Ohm as trigger, 5K~3K Ohm is uncertain value, it is possible to judge trigger. > 5K Ohm as normal loop.
“Gas” N.O. loop output impedance + circuit impedance < 1K Ohm as trigger, 1K~500 Ohm is uncertain value, it is possible to judge trigger. > 1K Ohm as normal loop.

Video Recorder
Video recorded with a device that is compatible with MPEG-4.(Linux format)
Resolution : 640*480  30FPS per second
Memory Card: 4GB (SDHC Card) , the max. is up to 16GB
System: PAL or NTSC
Language: English

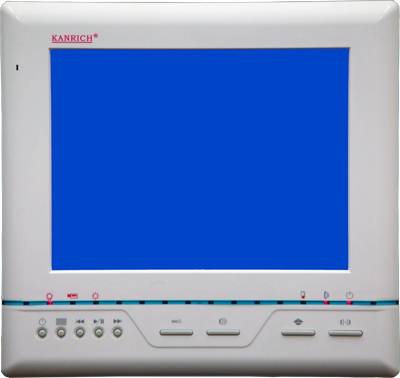

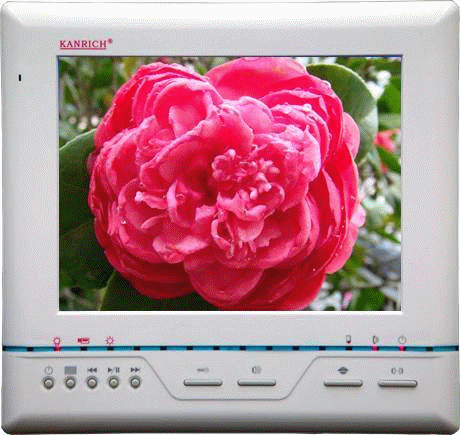

PH-855MmR 8” Handsfree LED color Monitor w/ Video Recorder

Video Handsfree Monitor
Power In: DC15V
Screen: Color- 8" LED Color LCD Panel (4:3)
Brightness: 250 nix (or cd/m2), new vivid saturation color
Resolution: 800 RGB(W) x 600(H) dot
Active Area: 162(W) x 121.5(H) mm
Dot Pitch: 0.2025(W) x 0.2025(H) mm
Color configuration: R. G. B. stripe
View Angle: Top: 50deg. Bottom: 65deg.
left / Right: 65deg
Calling tone: Ding-Dong tone
Consumption: standby 260mA. operating 650mA
Wall mounting type
Material: ABS
wire: 4 wires + 2 power wires + 1 Video cable
Dimension: 212W/201H/40T mm
Packing: 0.18 cubic ft
Weight: 1.0 kg

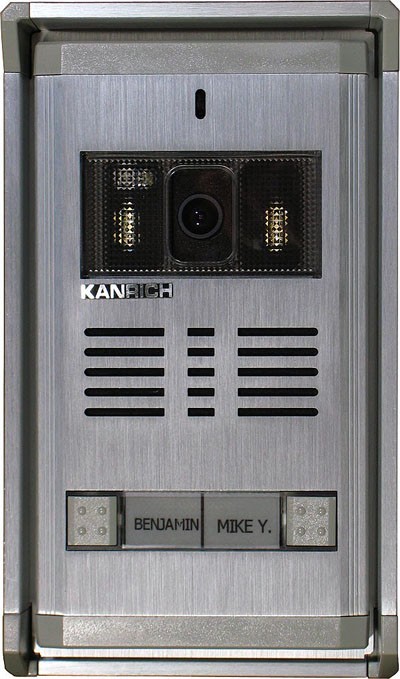

PH-855C10AL Aluminum Camera

Power In: DC15~18V by PH-P7a
1 Resident or 2 Residents
Resolution: Colour- 480 TV line
Lens: Auto
CCD: 1/3" Color CCD
F1.8 / 3.0mm,Full angle 92 Degree
Min. illumination: Color-0.1 Lux (w/ 4pcs white LED)
Dimensions: 240X120X60mm
Packing: 0.4 cubic ft
Weight: 0.8 kg
Need Prebox (Surface or flash Type)
Aluminum case, Back light name plate

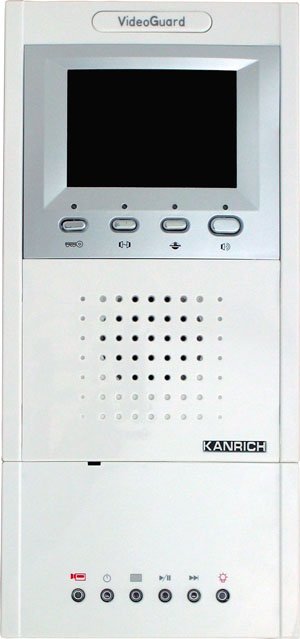

PH-812MbR /855MBR The HandsFree Monitor & Video Recorder

Video Handsfree Monitor
Power In: DC15V
Screen: Colour- 3.5" Diagonal Color TFT LCD Panel
Resolution: 65k colors(16 bits), 105,196 pixels/480H X 234V
Active Area: 72(W)x50.554(H)(mm)
Dot Pitch: 0.150(H)x0.216(V)(mm)
View Angle: Top: 10deg.; Bottom: 30deg.;left / Right: 45deg
Calling tone: Ding-Dong tone
Consumption: standby 350mA. operating 700mA.
wire: 2 wires only
Dimension: 130/280/45 mm
Packing: 0.3 cubic ft
Weight: 1.0 kg

Video Recorder
Video recorded with a device that is compatible with MPEG-4.(Linux format)
Resolution : 640*480  30FPS per second
Memory Card: 4GB (SDHC Card) , the max. is up to 16GB
System: PAL or NTSC
Language: English

PH-855C10 Stainless Steel Camera

Power In: DC15~18V by PH-P7a
1 Resident to 4 Residents
Resolution: Color- 480 TV line
Lens: Pin hole Lens, Auto
CCD: 1/3" Color CCD
Min. illumination: Color-0.1 Lux (w/ 4pcs white LED)
Dimensions: 100x180x25mm
Packing: 0.06 cubic ft
Weight: 1.0 kg
Do not need Prebox (Surface Type)
Stainless steel case

PH-855Mh 4" Color Handsfree Monitor

Video Handsfree Monitor
Power In: DC15V
Screen: Color- 4" Diagonal Color TFT LCD Panel
Back light: White LED
Resolution: 480H X 234V  dot
Active Area: 82.1(W)x61.8(H)(mm)
Dot Pitch: 0.264(H)x0.17(V)(mm)
View Angle: Top: 10deg.; Bottom: 30deg.;left / Right: 45deg
Calling tone: Ding-Dong tone
Consumption: standby 30mA. operating 300mA
wire: 4 wires + 2 power wires + 1 Video cable
The message LED flash if the call is from the 855CC or the Camera
Dimension:110w/113h/35 mm
Packing: 0.2 cubic ft
Weight: 0.4 kg
Option: prebox, Holder

Video Handsfree Monitor
Power In: DC15V
Screen: Color- 3.5" Diagonal Color TFT LCD Panel
Resolution: 65k colors(16 bits), 105,196 pixels/480H X 234V
Active Area: 72(W)x50.554(H)(mm)
Dot Pitch: 0.150(H)x0.216(V)(mm)
View Angle: Top: 10deg.; Bottom: 30deg.;left / Right: 45deg
Calling tone: Ding-Dong tone
Consumption: standby 200mA. operating 450mA
wire: 4 wires + 2 power wires (812Mb: 2 wires only)
The message LED flash if the call is from the 855CC or the Camera
Dimension: 130/205/45 mm
Packing: 0.2 cubic ft
Weight: 0.7 kg

PH-855C7 + PH-NP

Power In: DC15~18V by PH-P7a
Resolution: Color- 480 TV line
Lens: Auto
CCD: 1/3" Color CCD
F1.8/3.0mm,Full angle 92 Degree
Min. illumination: Colour-0.1 Lux (w/ 4pcs white LED)
Dimensions: (PH-855C7 only)
W/prebox: 325x120x80mm (w/flush mounting prebox)
W/O prebox: 325x120x60mm
Packing: 0.13 cubic ft
Weight: 1.5 kg
Need Prebox
Stainless case+ Back light Keypad
500 password for door open code
European Style + Memory your name in Camera

Power In: DC15~18V by PH-P7a
1 Resident to 4 Residents
Resolution: Colour- 480 TV line
Lens: Pinhole Lens, Auto
CCD: 1/3" Color CCD
Min. illumination: Color-0.1 Lux (w/ 4pcs white LED)
Dimensions: 100x180x25mm
Packing: 0.06 cubic ft
Weight: 1.0 kg
Need Prebox (Flush Type)
Stainless steel case

Power In: DC15~18V by PH-P7
1 Resident to 4 Residents
Resolution: Color- 480 TV line
Lens: Pin hole Lens, Auto
CCD: 1/3" Color CCD
Min. illumination: Color-0.1 Lux (w/ 4pcs white LED)
Dimensions: 100x180x25mm
Packing: 0.06 cubic ft
Weight: 1.0 kg
Need Prebox (Flush Type)
Stainless steel case
